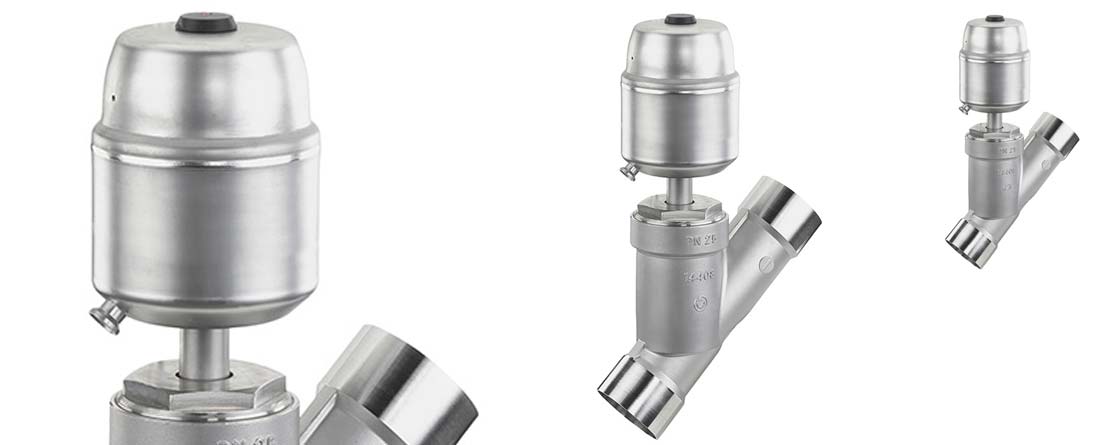

GEMU Angle Seated Globe Valve

Construction
The GEMU 550 Series angle seat globe valve, which can also be used at relatively high temperatures, has a plastic pneumatic piston actuator and PTFE seat providing reliable operation.
The valve spindle is sealed by a self-adjusting gland packing providing low maintenance and reliable valve spindle sealing even after a long service life. The wiper ring fitted in front of the gland packing protects the seal against contamination and damage.

Features

  • Substantially reduced installation dimensions when using the body with male threads which can be installed using union nuts
  • When using actuated valves in sizes 0 and 1 the gland packing is not subjected to line pressure as the pressure is sealed by the valve seat when closed
  • Materials of all medium wetted parts can be selected to suit relevant applications
  • Control valves with control cone available

Advantages

  • Various types of valve body connections: Threaded sockets, threaded spigots, butt weld spigots
  • Good flow capability
  • Extensive range of accessories
  • Low weight

The GEMU 550 Series angle seat globe valve, which can also be used at relatively high temperatures, has a plastic pneumatic piston actuator and PTFE seat providing reliable operation.
The valve spindle is sealed by a self-adjusting gland packing providing low maintenance and reliable valve spindle sealing even after a long service life. The wiper ring fitted in front of the gland packing protects the seal against contamination and damage.
